CH01 - Preliminary¶

This series records my learning process of the 51 series video on Bilibili - Jiangxi Science and Technology College Embedded System Basic Course

Development Tools¶

Development Board¶

Puzhong 51 single-chip development board - STC89C516RD+

KEIL C51¶

For programming and debugging, you can download the installation package from the official website, and seek a crack method from Taobao for installation.

STC-ISP¶

For flashing programs, you can download the installation package from the official website for installation.

Programming Method¶

1. Open KEIL C51
2. Select Project -> New uVision Project
3. Select the project path, enter the project name, and click Save
4. Select the chip model and click OK - ATMEL -> AT89C52
5. Select Target -> Options for Target
6. Select C51 -> Output -> Select Hex, click OK
7. Select File -> New -> New File
8. Select C File, enter the file name, and click Save
9. Enter the code and click Save
10. Select Project -> Build Target

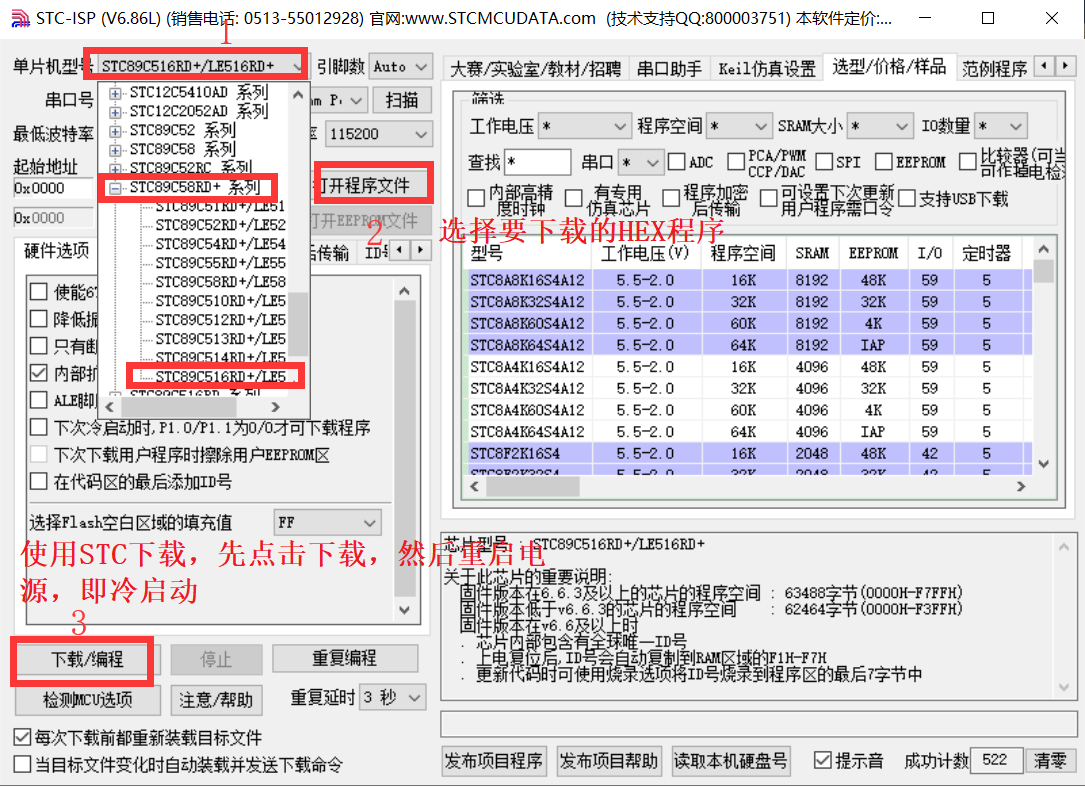

11. Open STC-ISP
12. Select the chip model and click OK
13. Select the file and click OK
14. Click Start programming, then reset the single-chip microcomputer (turn off and then turn on the power)
