Trainer: training and evaluation¶

This follows tiny_trainer.hpp/.cpp. Trainer references a Sequential and an Optimizer without owning them; both must outlive it. Enable TINY_AI_TRAINING_ENABLED for the training API.

Current configuration and API¶

Config field	Default
`epochs`	50
`batch_size`	16
`verbose`	true
`print_every`	10
`lr_decay`	1.0

fit(Dataset&, const Config&, Dataset* = nullptr) requires Config. Evaluation uses evaluate_loss() and evaluate_accuracy(), both with default batch size 32. Accuracy is returned in 0–1.

#include "tiny_ai.h"

void train_model(tiny::Sequential &model, tiny::Optimizer &optimizer,
                 tiny::Dataset &train, tiny::Dataset &validation)
{
    tiny::Trainer trainer(&model, &optimizer, tiny::LossType::CROSS_ENTROPY);
    tiny::Trainer::Config cfg;
    cfg.epochs = 100;
    cfg.batch_size = 16;
    trainer.fit(train, cfg, &validation);
    float accuracy = trainer.evaluate_accuracy(validation);
    (void)accuracy;
}

Cross entropy computes Softmax internally from logits. Do not automatically append another Softmax to a new classification model. The loop performs forward → loss → backward → optimizer step; batches preserve alignment between features and labels after index shuffling.

Complete callable example · Implementation

Historical design and API excerpts¶

Older definitions, defaults and schematic calls are retained for comparison. Use the current contracts above and the project headers.

Historical design and API excerpts

TinyAI · Train · Trainer — Design notes¶

Implementation and records

APIs in this section are based on CODE/AIoTNode-TinyAuton-AI/middleware/. Source excerpts and serial output include historical records; check the project entry and enabled selectors before reproducing a test.

Notes

Trainer ties together a Sequential model, an Optimizer, a loss type and a Dataset into a standard training pipeline, exposing fit / evaluate_loss / evaluate_accuracy. It lazily collects model parameters and initialises the optimiser on the first call, so application code only needs to describe "network + optimiser + loss" before training starts.

Trainer — The Training Loop: Repeat forward → loss → backward → update

Encapsulates the classic training loop.

Intuition¶

One Epoch¶

for each batch:
    1. forward:    model(batch) → prediction
    2. loss:       loss_fn(prediction, label) → loss value
    3. backward:   gradient backprop → each param gets gradient
    4. step:       optimizer updates all params

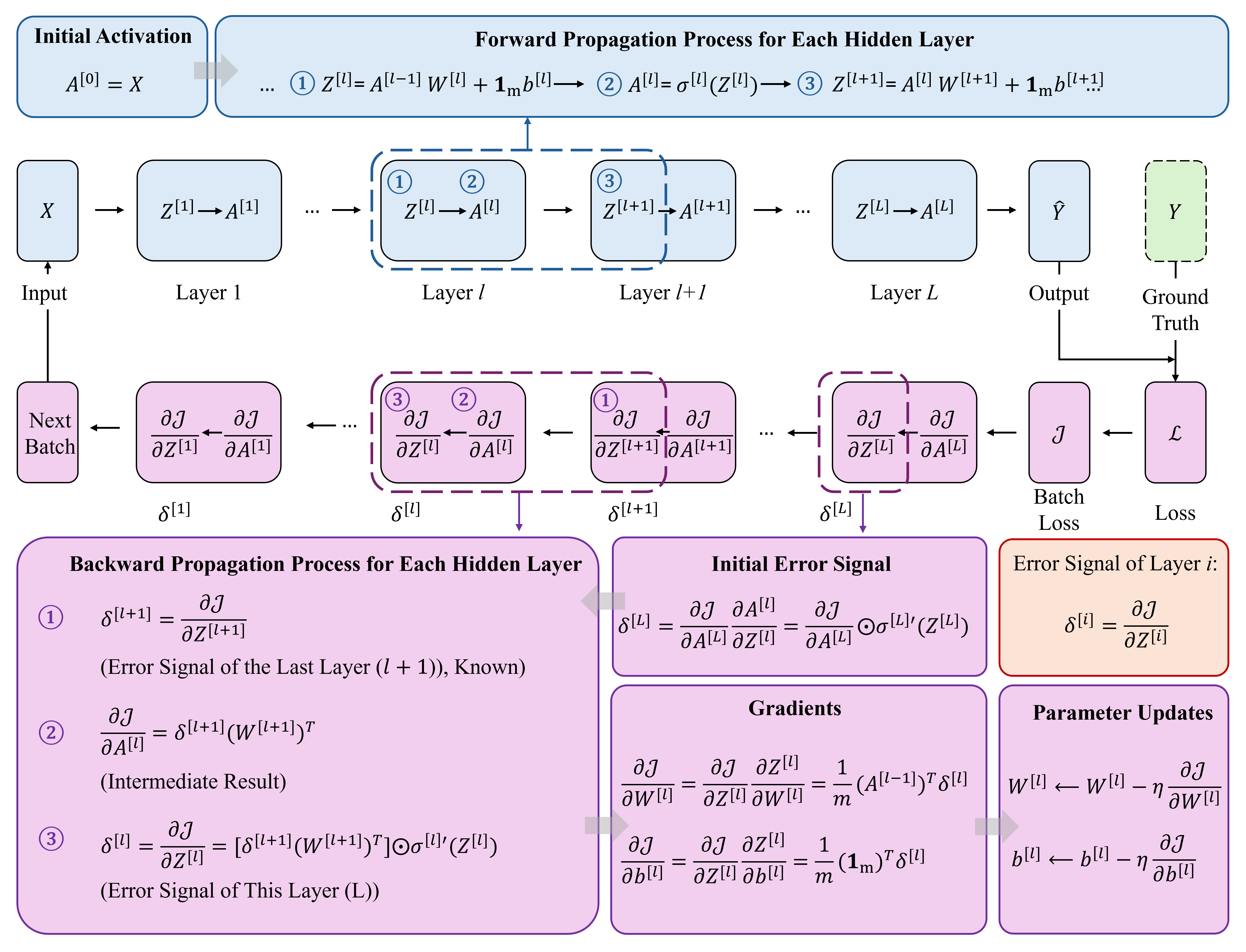

Forward & Backward Propagation — Diagram: Forward propagation (blue) and backward propagation (pink) — forward computes activations \(A^{[l]}\) layer by layer; backward propagates error signals \(\delta^{[l]}\) from the loss and computes parameter gradients

Core API¶

Trainer trainer(&model, &optimizer);
trainer.fit(&dataset, 100, 16);    // 100 epochs, batch=16

Monitoring¶

Loss trending down → good
Loss oscillating → LR too high or batch too small
Train acc high, val acc low → overfitting

CLASS DEFINITION¶

class Trainer
{
public:
    struct Config
    {
        int  epochs      = 100;
        int  batch_size  = 16;
        bool verbose     = true;
        int  print_every = 10;
    };

    Trainer(Sequential *model, Optimizer *optimizer,
            LossType loss_type = LossType::CROSS_ENTROPY);

    void fit(Dataset &train_data, const Config &cfg = Config{},
             Dataset *val_data = nullptr);

    float evaluate_loss    (Dataset &data, int batch_size = 16);
    float evaluate_accuracy(Dataset &data, int batch_size = 16);

private:
    void ensure_params_collected();

    Sequential *model_;
    Optimizer  *optimizer_;
    LossType    loss_type_;

    std::vector<ParamGroup> params_;
    bool                    params_collected_;
};

Trainer holds raw pointers — the model / optimiser lifetime is the caller's concern.

fit FLOW¶

void Trainer::fit(Dataset &train_data, const Config &cfg, Dataset *val_data)
{
    ensure_params_collected();   // first-time optimiser init

    int *y_batch = TINY_AI_MALLOC(...);

    for (int epoch = 0; epoch < cfg.epochs; epoch++)
    {
        train_data.shuffle(epoch + 1);
        ...
        while (next_batch returns > 0)
        {
            Tensor logits = model_->forward(X_batch);
            float  loss   = loss_forward(logits, ..., loss_type_, y_batch);

            optimizer_->zero_grad(params_);
            Tensor grad = loss_backward(logits, ..., loss_type_, y_batch);
            model_->backward(grad);
            optimizer_->step(params_);
        }

        if (val_data) print "Epoch  loss=  val_acc="
        else          print "Epoch  loss="
    }
}

Highlights:

Each epoch triggers train_data.shuffle(epoch + 1) to avoid the "same order" training bias.
The loss is dispatchable across MSE / MAE / CROSS_ENTROPY / BINARY_CE. For classification, Tensor target = zeros_like(logits) is just a placeholder; the real labels come from y_batch.
cfg.print_every controls log cadence: every print_every epochs the loss is printed (and val accuracy when val_data is passed).

evaluate_loss / evaluate_accuracy¶

float evaluate_loss(Dataset &data, int batch_size = 16);
float evaluate_accuracy(Dataset &data, int batch_size = 16);

Both call data.reset() and run forward in batches; they never mutate model parameters.
evaluate_loss returns the average loss across batches.
evaluate_accuracy reuses Sequential::predict to argmax, comparing against the real y_batch to return accuracy.

USAGE EXAMPLE¶

using namespace tiny;

Dataset full(X, y, N, F, C);
Dataset train, test;
full.split(0.2f, train, test, 42);

MLP model({F, 16, 8, C}, ActType::RELU);
Adam opt(1e-3f);
Trainer trainer(&model, &opt, LossType::CROSS_ENTROPY);

Trainer::Config cfg;
cfg.epochs      = 100;
cfg.batch_size  = 16;
cfg.print_every = 10;

trainer.fit(train, cfg, &test);
printf("Final test acc = %.4f\n", trainer.evaluate_accuracy(test));

TRAINING SWITCH¶

When TINY_AI_TRAINING_ENABLED == 0, the entire Trainer class (fit / evaluate_* included) is removed by the preprocessor, leaving only inference APIs.
For ESP32-S3 deployments you can disable training at idf.py menuconfig time to save ROM and RAM.

CUSTOM TRAINING LOOP¶

If the default fit is not enough (LR scheduler, mixed precision, custom logging…), follow the pattern in example_attention.cpp: hand-roll forward / backward / step while still leveraging Dataset and Optimizer:

std::vector<ParamGroup> params;
model.collect_params(params);
opt.init(params);
for (...)
{
    int actual = ds.next_batch(X_batch, y_batch, batch_size);
    Tensor logits = model.forward(X_batch);
    Tensor dlog   = cross_entropy_backward(logits, y_batch);
    opt.zero_grad(params);
    model.backward(dlog);
    opt.step(params);
}
